Fluorescent Penetrant Testing Equipment System

ZA-1633 systems are stand-alone fluorescent penetrant inspection systems for light volume inspection of small to medium size parts, including aerospace fasteners, automotive parts and surgical implant inspection.

Three different system configurations are available

  • ZA-1633 for Method A for water washable penetrant testing has 6 stations
  • ZA-1633 for Method B post-emulsifiable, lipophilic has 8 stations
  • ZA-1633 for Method D post-emulsifiable, hydrophilic has 9 stations

Features

  • 304 stainless steel tanks (16 gauge)
  • Durable welded steel frame
  • Digitally calibrated dryer control
  • EV6000 UV lamp
  • Stand alone inspection booth
  • Visible light in inspection hood
  • Ventilation fan in inspection hood

Specifications

Electrical Requirements: 230V or 460V, 60Hz, ingle Phase

Tank Size: 15.8 x 33 x 14.8 in / 40.1 x 83.8 x 37.6 cm

Tank Capacity: 27 gal / 102 L

Dryer: Digitally calibrated temperature control

UV Lamp: EV6000 hand-held LED black light

  • Method A
  • Method B
  • Method D

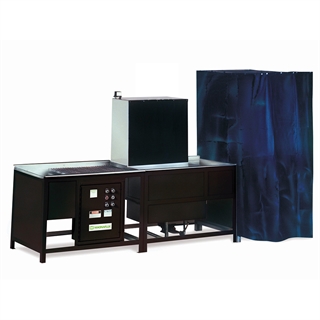

Method A – Water Washable

Dimensions

132 x 34 x 36 in / 335.3 x 86.4 x 91.4 cm



Stations

  1. Penetrant
  2. Drain
  3. Rinse
  4. Dryer
  5. Developer
  6. Inspection



Request a Quote

Method B – Post Emulsifiable, Lipophilic

Dimensions

165 x 34 x 36 in / 419.1 x 86.4 x 91.4 cm



Stations

  1. Penetrant
  2. Drain #1
  3. Emulsifier
  4. Rinse
  5. Drain #2
  6. Dryer
  7. Developer
  8. Inspection



Request a Quote

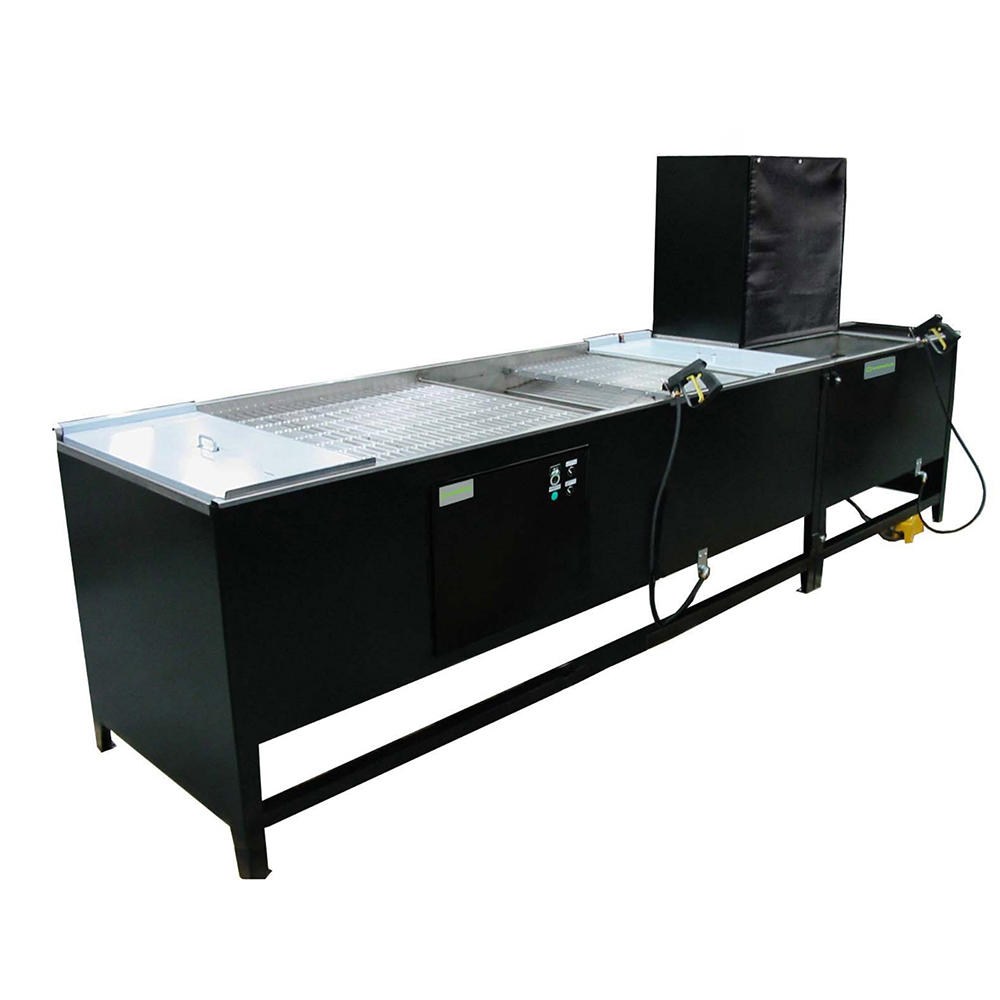

Method D – Post Emulsifiable, Hydrophilic

Dimensions

182 x 34 x 36 in / 462.3 x 86.4 x 91.4 cm



Stations

  1. Penetrant
  2. Drain #1
  3. Pre-Rinse
  4. Drain #2
  5. Remover
  6. Final Rinse
  7. Dryer
  8. Developer
  9. Inspection



Request a Quote
