Overcoming Fluorescent Penetrant Inspection Challenges in Additive Manufacturing

Improved Inspection of Complex Additive Manufacturing (AM) Surfaces using a Hybrid Penetrant Process

What Is Additive Manufacturing?

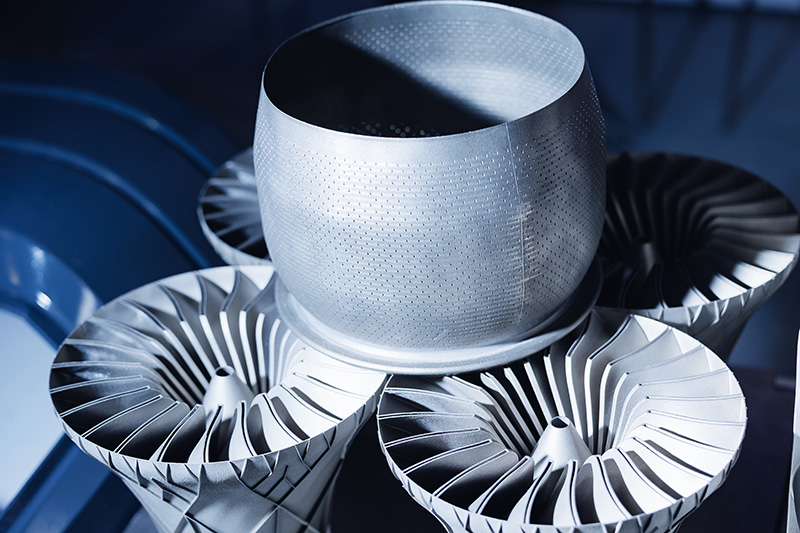

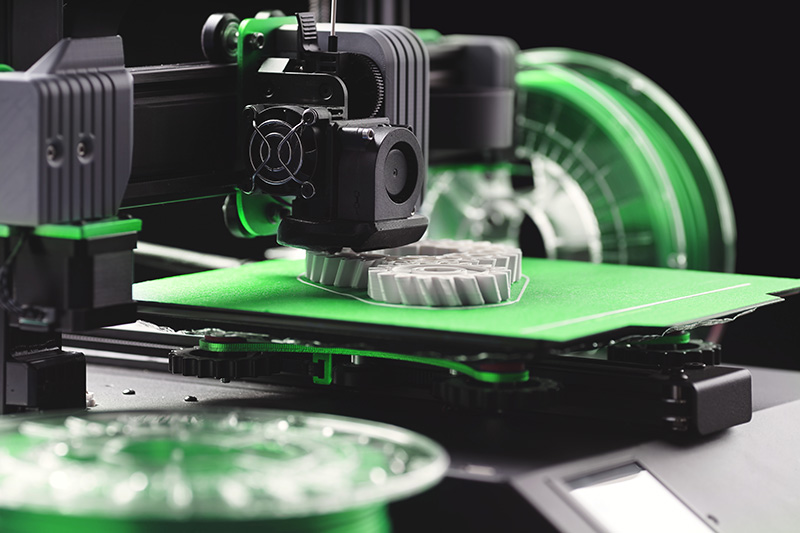

Additive manufacturing is a manufacturing process in which components are built layer-by-layer rather than being machined from solid stock or formed through casting and forging. Often referred to as "3D printing," additive manufacturing encompasses several technologies, including powder bed fusion (PBF), directed energy deposition (DED), binder jetting, material extrusion, and others.

Unlike traditional subtractive manufacturing, where material is removed to create a final geometry, additive manufacturing selectively deposits material only where needed. This enables the production of highly complex geometries, internal channels, lattice structures, and lightweight designs that are often impossible or impractical to manufacture using conventional methods.

While AM offers significant design freedom and manufacturing advantages, it also introduces unique flaw mechanisms and inspection challenges.


NDT Challenges in Additive Manufacturing

Metal AM components differ fundamentally from cast, forged, and wrought products. Layer-by-layer fabrication can introduce discontinuities such as:

• Surface and subsurface porosity
• Lack of fusion (LOF)
• Layer separations
• Cracking
• Inclusions
• Unconsolidated powder
• Dimensional inaccuracies

These discontinuities may occur at virtually any location within a component and can vary significantly depending on build orientation, process parameters, feedstock quality, and post-processing operations.

For this reason, AM aerospace components often require multiple complementary NDT methods, including computed tomography (CT), ultrasonic testing (UT), eddy current testing (ET), radiography (RT), and penetrant testing (PT).

The Role of Fluorescent Penetrant Inspection

Fluorescent penetrant inspection (FPI) remains one of the most sensitive and cost-effective methods for detecting surface-connected defects. When properly applied, FPI can reveal:

• Surface-breaking cracks
• Surface porosity
• Lack-of-fusion indications
• Surface-connected voids
• Weld-type discontinuities

The method relies on capillary action, allowing fluorescent penetrants to enter tight surface openings. Excess penetrant is then removed, and indications are developed for inspection under UV-A light. However, the effectiveness of penetrant inspection depends heavily on surface condition.

AM surfaces frequently contain irregular topography which can retain penetrant after washing. This creates excessive fluorescent background that reduces indication contrast and masks discontinuities.

Many AM surfaces are too rough, irregular, or porous for effective penetrant inspection without surface modification. Machining, abrasion, grinding, grit blasting, and/or etching are often required to minimize background fluorescence. Improper preparation, however, can smear material over discontinuities and reduce defect detectability.

The Magnaflux Hybrid Method A/D Solution

Testing revealed that the key challenge was not penetrant sensitivity, but rather the ability to remove excess penetrant from porous AM surfaces without removing penetrant from relevant discontinuities.

It was found that successful inspection required shifting the penetrant removal step from water rinsing to more controlled, chemical emulsification. Following extensive experimentation, Magnaflux developed a hybrid process that combines ZL-67, a Level 3 Method A water-washable fluorescent penetrant, with ZR-10E, a Method D hydrophilic remover, and ZP-9F, a Form D/E solvent based developer. The resulting approach provided the most consistent combination of sensitivity and removability across AM surfaces produced at all build angles.

By optimizing how excess penetrant is removed, inspectors can achieve more consistent results across the varying surface conditions produced by additive manufacturing.

Hybrid Process Parameters

The optimized process includes:

• Magnaflux ZL-67 Level 3 Method A penetrant
• 8-minute penetrant dwell
• Less than 5-second pre-rinse at 4 psi
• 15-minute dwell in 20% Magnaflux ZR-10E remover (no agitation)
• 5–15 second rinse at 4 psi under UV-A illumination
• 10-minute drying cycle
• 10-minute Magnaflux ZP-9F developer application
•  Inspect under UV-A lighting

Rather than relying on water removal, the process uses controlled chemical action to remove excess penetrant from the porous AM surface while preserving penetrant trapped within relevant discontinuities.

Internal testing ultimately demonstrated that:

• Level 3 sensitivity could be maintained
• Background fluorescence could be significantly reduced
• Downskin inspectability could be dramatically improved
• A combination of existing Magnaflux AMS 2644 - qualified products could be used
• Inspection performance became more consistent across multiple AM build angles

Conclusion

As additive manufacturing continues to expand across aerospace applications, conventional penetrant inspection methods face increasing challenges associated with rough surfaces, surface-connected porosity, and complex geometries.

The collaborative development work performed on representative aerospace AM panels demonstrates that these challenges can be addressed through process innovation. By combining a Magnaflux Level 3 Method A penetrant with a modified Method D process sequence, Magnaflux developed a hybrid approach that substantially improves excess penetrant removal while preserving flaw sensitivity on difficult AM downskin surfaces. It is important to remember this is an experimental methodology, and it is not an official approved method within industry specifications.

As the aerospace industry continues to qualify and certify increasingly complex AM hardware, hybrid inspection approaches such as this may provide a practical pathway for extending the proven benefits of fluorescent penetrant inspection to the next generation of additively manufactured components.
