Fluorescent Penetrant Testing Equipment System

ZA-1227 systems are compact fluorescent penetrant inspection systems for batch and low volume inspection of small to medium size parts, including aerospace fasteners, automotive parts and surgical implant inspection.

Three different system configurations are available:

  • ZA-1227 for Method A for water washable penetrant testing has 5 stations
  • ZA-1227 for Method B post-emulsifiable, lipophilic has six stations
  • ZA-1227 for Method D post-emulsifiable, hydrophilic has seven stations

Features

  • Compact Size
  • 304 Stainless Steel Tanks (16 Gauge)
  • Durable Welded Steel Frame
  • Adaptable To Multiple Applications
  • Globally Authorized Service Centers

Specifications

Electrical Requirements: 115V, 60Hz, Single Phase

Tank Size: 12.9  x 27.6  x 16 in / 32.8 x 70.2  x 40.6 cm

Tank Capacity: 10 gal / 38.7 L

Dryer: Thermostatically controlled

UV Lamp: EV6000 hand-held LED black light

  • Method A
  • Method B
  • Method D

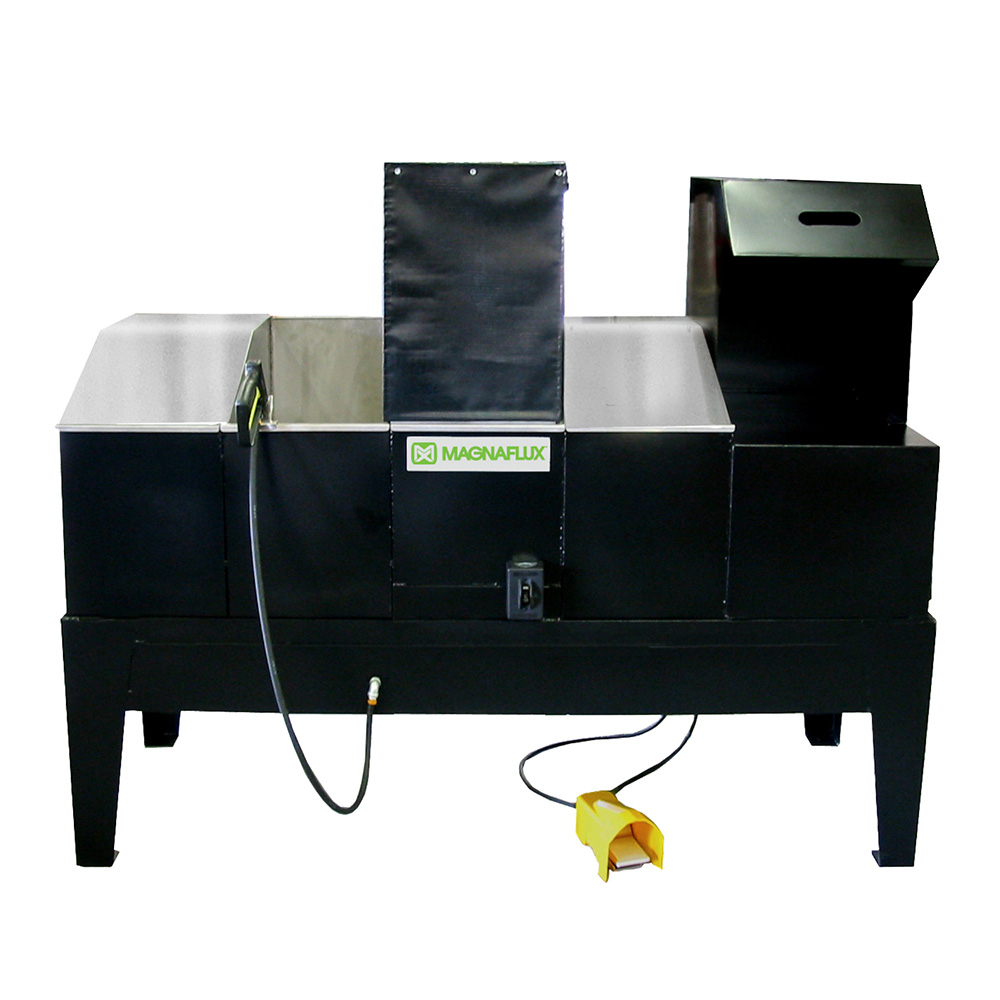

Method A – Water Washable

Dimensions

56 x 28 x 36 in / 142 x 71 x 91 cm



Stations

  1. Penetrant
  2. Rinse
  3. Dryer
  4. Developer
  5. Inspection



Request a Quote

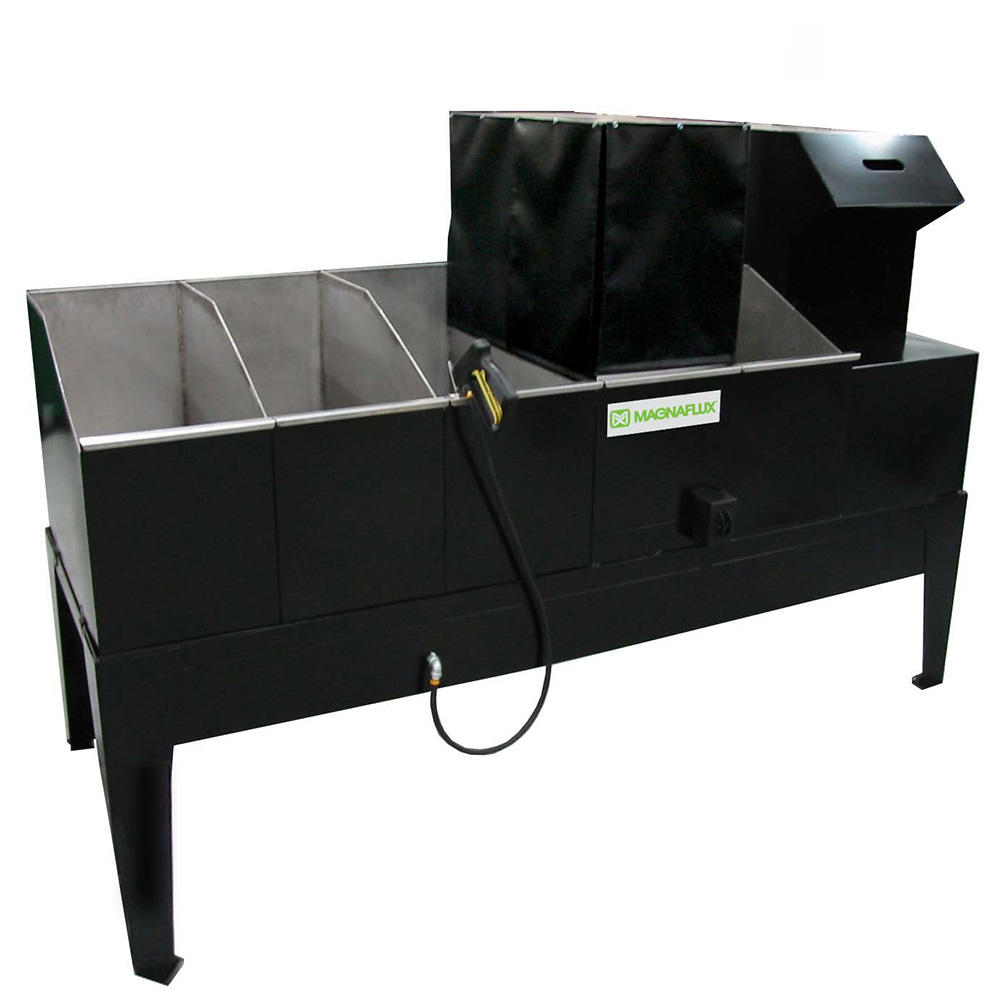

Method B – Post Emulsifiable, Lipophilic

Dimensions

70 x 28 x 36 in / 177.8 x 71.1 x 91.4 cm



Stations

  1. Penetrant
  2. Emulsifier
  3. Rinse
  4. Dryer
  5. Developer
  6. Inspection



Request a Quote

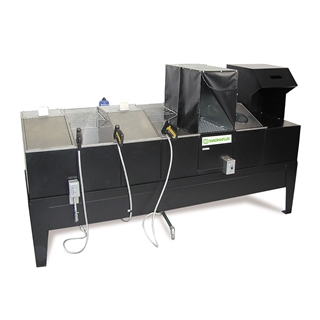

Method D – Post Emulsifiable, Hydrophilic

Dimensions

83 x 28 x 36 in / 210.8 x 71.1 x 91.4 cm



Stations

  1. Penetrant
  2. Pre-Rinse
  3. Remover
  4. Final Rinse
  5. Dryer
  6. Developer
  7. Inspection



Request a Quote
